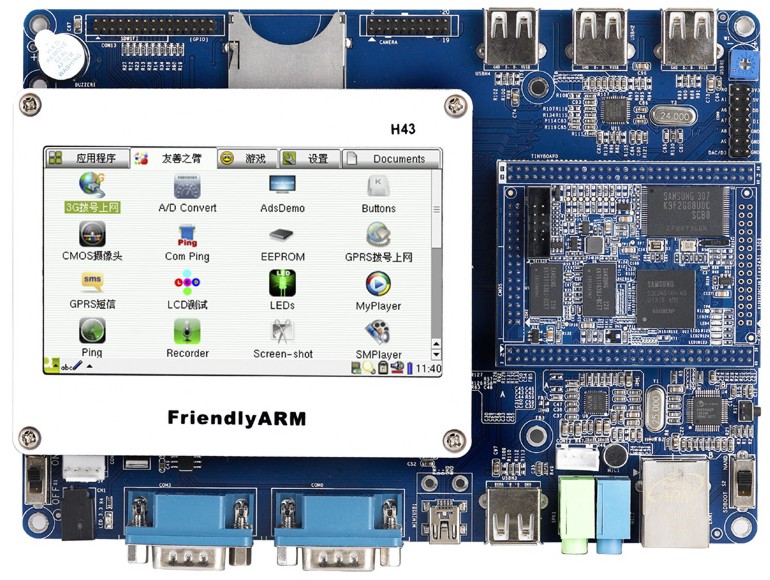

Tiny2451 | S3C2451 ARM9 Board

FriendlyARM Tiny 2451 Stamp Module with 400 MHz Samsung S3C2451 ARM9 processor.

Specification: Stamp Module

• Dimension: 64 x 50 mm
• CPU: 400 MHz Samsung S3C2451 ARM926EJ (max freq. 533 MHz)
• RAM: 128 MB, 16 bit Bus
• Flash: up to 1GB NAND Flash
• Serial, SPI, I2C, I2S, SD/MMC, USB, LCD, Camera Interface
• Analog Input and Output
• User Outputs: 4x LEDs
• Expansion headers (2.0 mm)
• Debug: 10 pin JTAG (2.0 mm)
• Power: 2-6V
• OS Support
  • Windows CE 6
  • Linux

Specification: SDK-Board

• Dimension: 180 x 130 mm
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: DB9 connector (RS232), total: 4x serial port connectors
• USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
• Audio Output: 3.5 mm stereo jack
• Audio Input: 3.5mm jack + Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery (CR1220)
• Beeper: PWM buzzer
• Camera: 20 pin Camera interface (2.0 mm)
• LCD: 40 pin + 45 pin connector for FriendlyARM Displays and VGA Board
• User Inputs: 4x push buttons and 1x A/D pot
• Expansion headers (2.0 mm)
• Power: regulated 5V

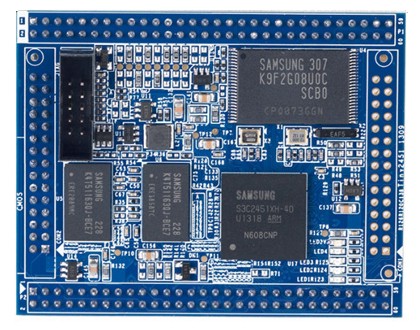

Stamp Module

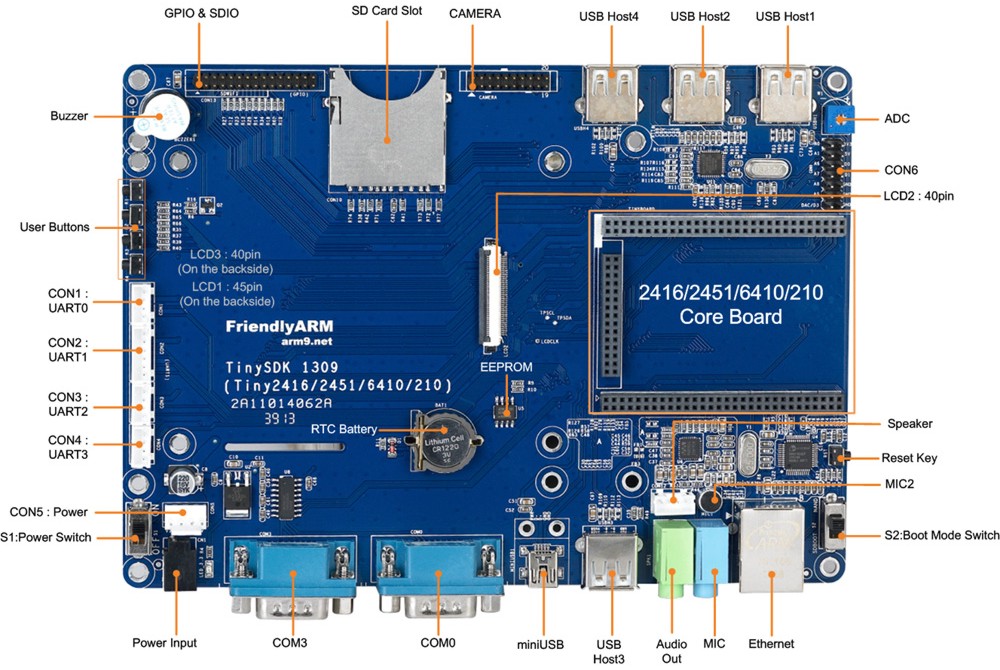

SDK-Board
