Super4412 | Exynos4412 ARM Cortex-A9 Board

FriendlyARM Super 4412 Stamp Module with 1.5 GHz Samsung Exynos4412 ARM Cortex-A9 processor.

Specification: Stamp Module

• Dimension: 74 x 55 mm
• CPU: 1.5 GHz Samsung Exynos4412 ARM Cortex-A9 (Quad-Core)
• RAM: 2 GB, 32 bit Bus
• Flash: up to 32GB eMMC Flash
• User Outputs: 4x LEDs
• Expansion headers (2.0 mm)
• Power: 2-6V
• OS Support
  • Linux
  • Ubuntu
  • Android

Specification: SDK-Board

• Dimension: 180 x 130 mm
• EEPROM: 256 Byte (I2C)
• Ext. Memory: SD-Card socket
• Serial Ports: DB9 connector (RS232), RS485, total: 4x serial port connectors)
• USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
• mini PCIe
• Audio: WM8960 codec
• Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
• Audio Input: 3.5mm jack + Condenser microphone
• Ethernet: RJ-45 10/100M (DM9000)
• RTC: Real Time Clock with battery
• Beeper: PWM buzzer
• G-Sensor
• Camera: 20 pin (2.0 mm) Camera interface
• Monitor: HDMI
• LCD: 40 pin FFC and 45 pin FFC connector
• User Inputs: 8x buttons and 1x A/D pot
• Expansion: (2.0 mm)
• Power: regulated 5V

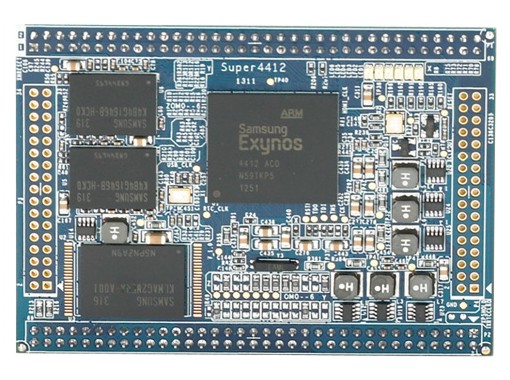

Stamp Module

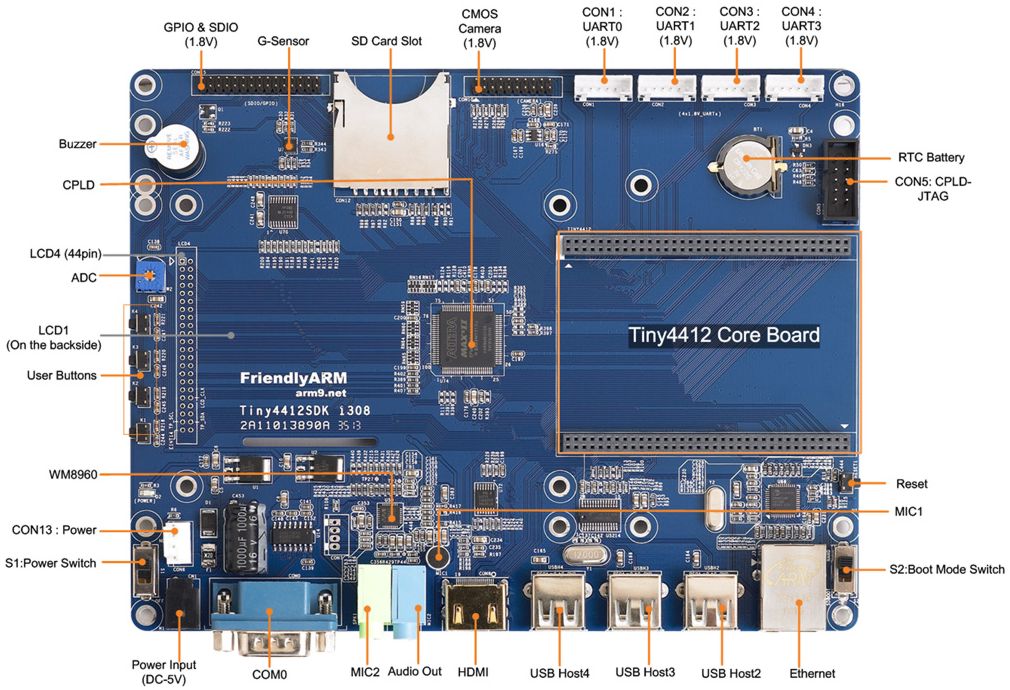

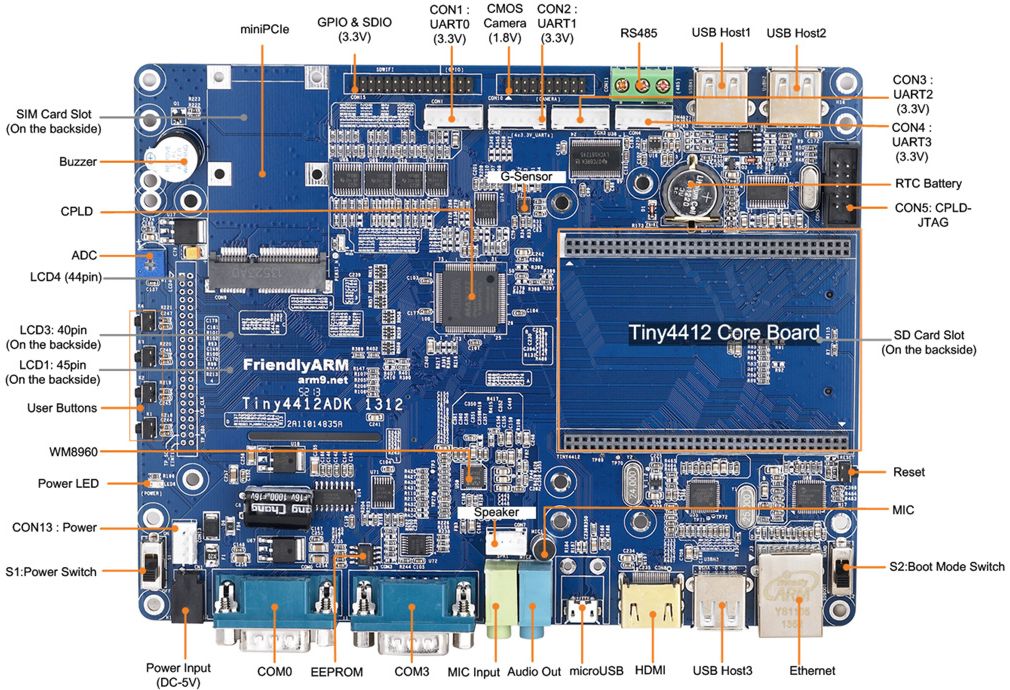

SDK-Board
