Mini6410 | S3C6410 ARM11 Board

FriendlyARM Mini 6410 SBC (Single-Board Computer) with 533 MHz Samsung S3C6410 ARM11 processor.

Specification

  • Dimension: 110 x 110 mm
  • CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S with VFP-Unit and Jazelle (max freq. 667 MHz)
  • RAM: 256 MB, 32 bit Bus
  • Flash: up to 1GB NAND Flash
  • EEPROM: 256 Byte (I2C)
  • Ext. Memory: SD-Card socket
  • Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
  • IR: Infrared Receiver
  • USB: 1x USB-A Host 1.1, 1x miniUSB Slave/OTG 2.0
  • Audio Output: 3.5 mm stereo jack
  • Audio Input: Condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery
  • Beeper: PWM buzzer
  • Camera: 20 pin (2.0 mm) Camera interface
  • TV Output: AV Out
  • LCD Interface: 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays and VGA Board
  • User Inputs: 8x push buttons and 1x A/D pot
  • User Outputs: 4x LEDs
  • Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • Power: regulated 5V
  • Power Consumption: Mini6410: 0.25 A, Mini6410 + 4.3" LCD: 0.5 A
  • OS Support
    • Windows CE 6
    • Linux
    • Ubuntu
    • Android

Board

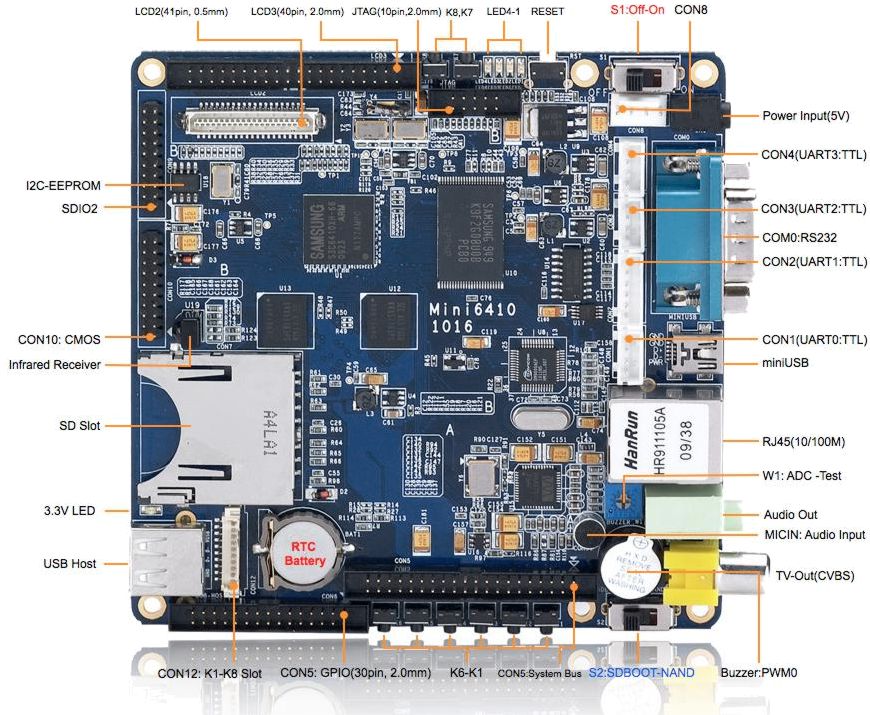

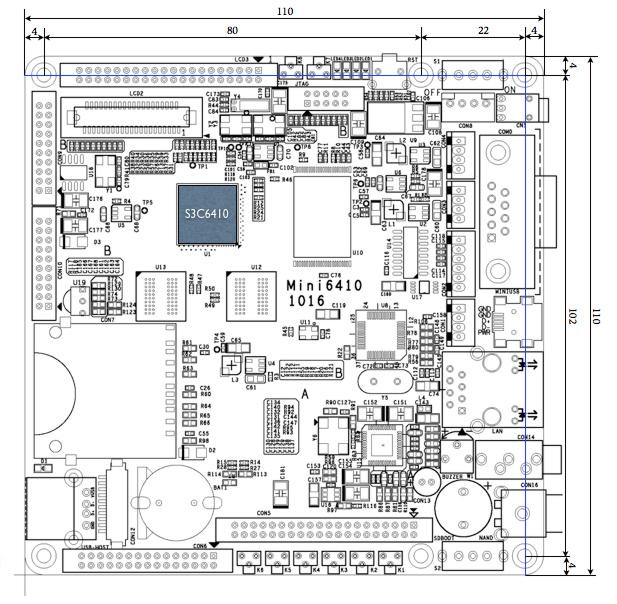

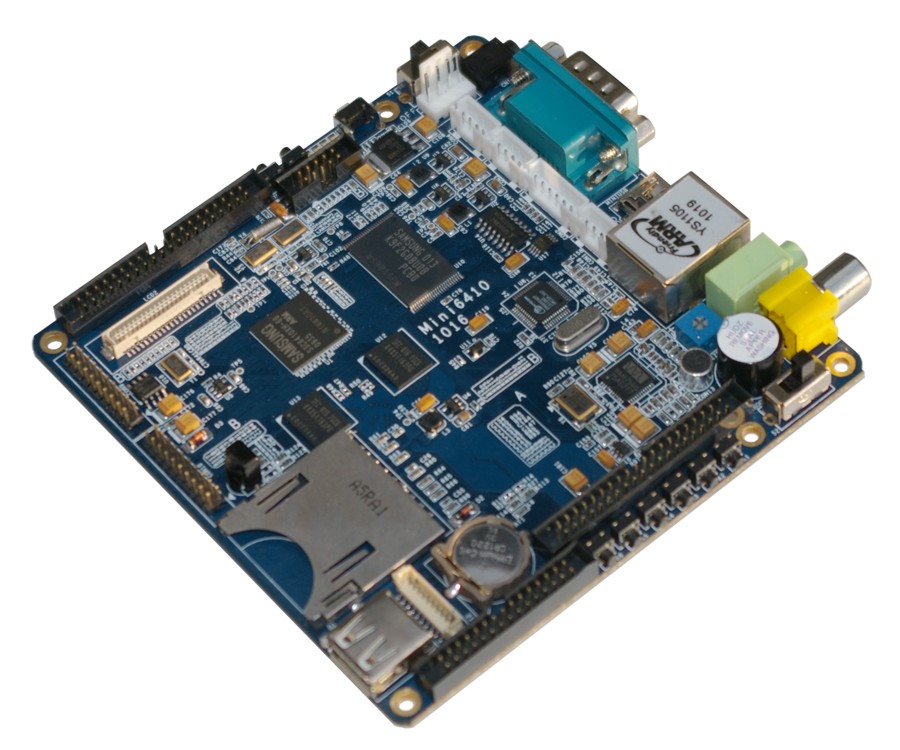

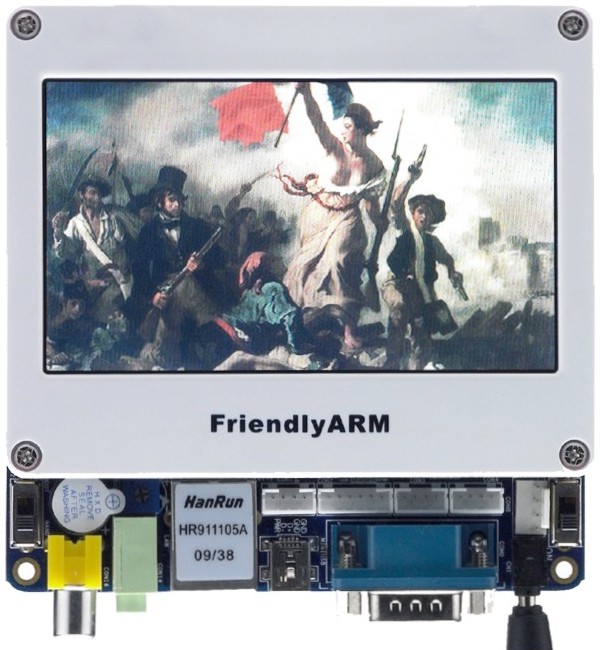

Mini6410 Mini6410 Mini6410 Overview Mini6410 Dimension Mini6410 with 4.3" Display and Touch Panel
