Mini2451 | S3C2451 ARM9 Board

FriendlyARM Mini 2451 SBC (Single-Board Computer) with 400 MHz Samsung S3C2451 ARM9 processor.

Specification

  • Dimension: 100 x 100 mm
  • CPU: 400 MHz Samsung S3C2451 ARM926EJ (max freq. 533 MHz)
  • RAM: 128 MB, 16 bit Bus
  • Flash: up to 1GB NAND Flash
  • EEPROM: 256 Byte (I2C)
  • Ext. Memory: SD-Card socket
  • Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
  • USB: 1x USB-A Host 1.1, 1x miniUSB Slave/OTG 2.0
  • Audio Output: 3.5 mm stereo jack
  • Audio Input: Condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery (CR1220)
  • Beeper: PWM buzzer
  • Camera: 20 pin (2.0 mm) Camera interface
  • LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
  • User Inputs: 4x push buttons and 1x A/D pot
  • User Outputs: 4x LEDs
  • Expansion: 40 pin System Bus, 34 pin GPIO (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • Power: regulated 5V
  • OS Support
    • Windows CE 6
    • Linux

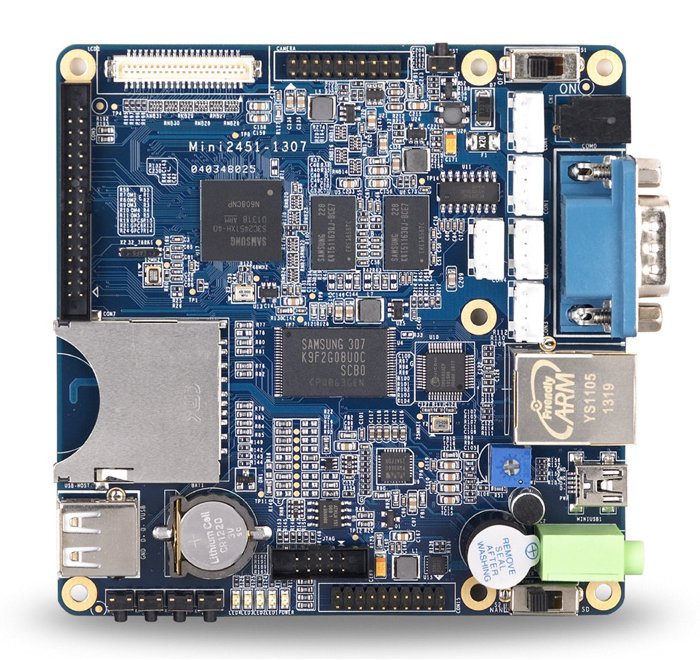

Board

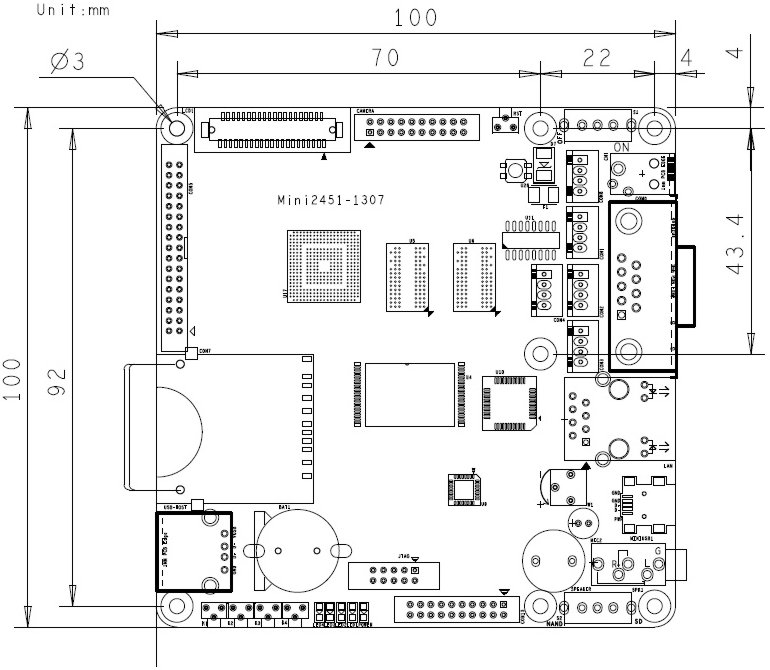

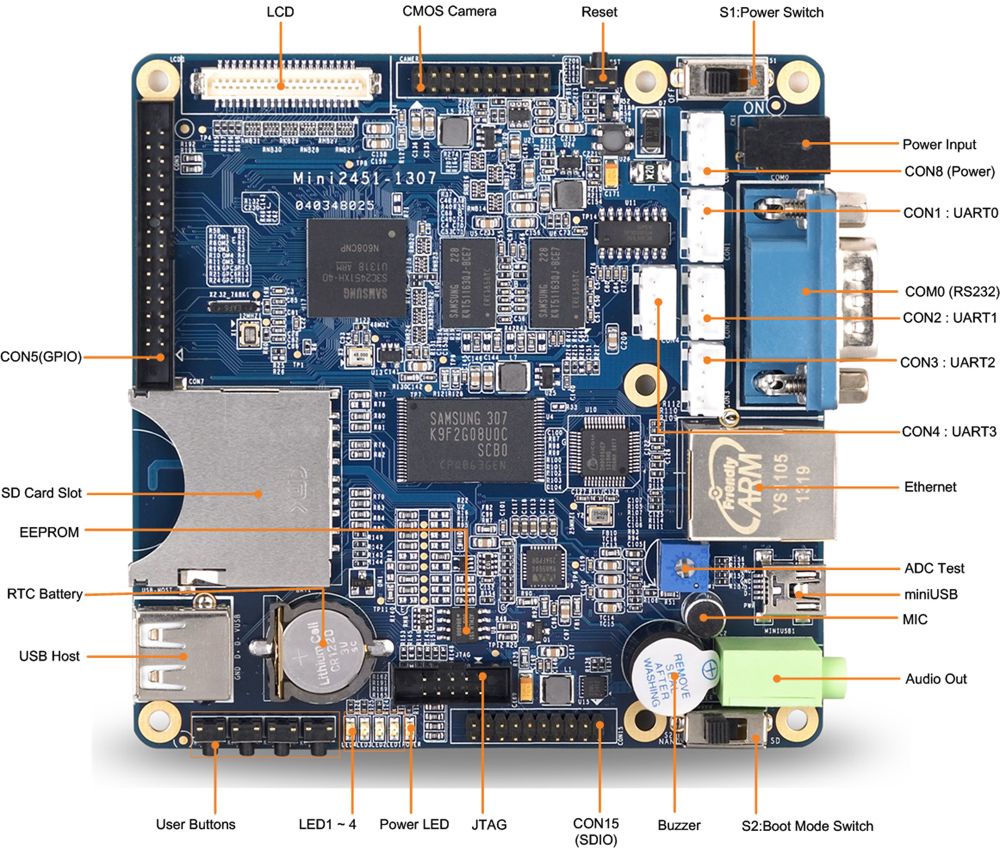

Mini2451 Mini2451 Overview Mini2451 Dimension
