NanoPC-T1 | Exynos4412 ARM Cortex-A9 Board

FriendlyARM NanoPC T1 SBC (Single-Board Computer) with 1.5 GHz Samsung Exynos4412 ARM Cortex-A9 processor.

Specification

  • Dimension: 100 x 80 mm
  • CPU: 1.5 GHz Samsung Exynos4412 ARM Cortex-A9 (Quad-Core)
  • RAM: 1 GB, 32 bit Bus
  • Flash: up to 4GB eMMC Flash
  • Ext. Memory: SD-Card socket
  • Serial Ports: 3x serial port connectors
  • USB: 1x USB-A Host 2.0, 1x MicroUSB Slave/OTG 2.0
  • Audio Output: 3.5 mm stereo jack
  • Ethernet: RJ-45 10/100M
  • RTC: Real Time Clock with battery
  • Camera: 20 pin (2.0 mm) Camera interface + 15 pin MIPI-CSI
  • LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
  • Monitor: HDMI
  • User Inputs: 2x push buttons
  • User Outputs: 2x LEDs
  • Expansion: 30 pin GPIO1 + 16 pin GPIO2 + 6 pin Sensors (2.0 mm)
  • Power: regulated 5V
  • OS Support
    • Linux
    • Ubuntu
    • Android

Board

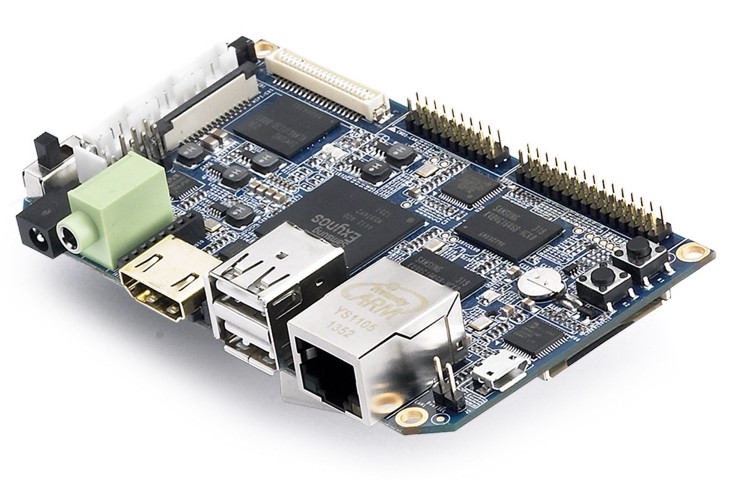

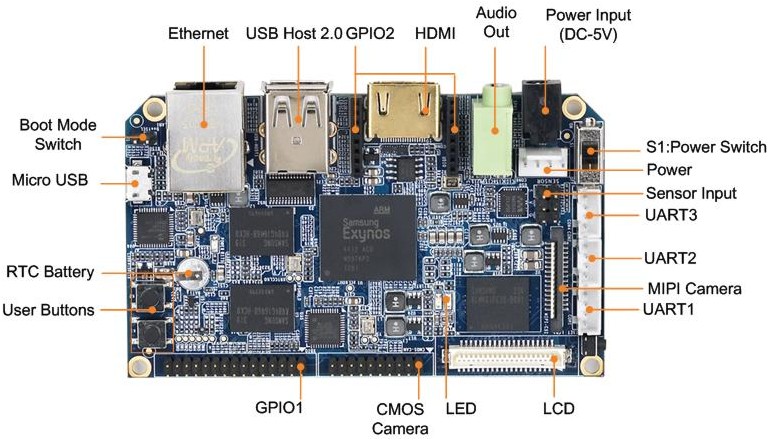

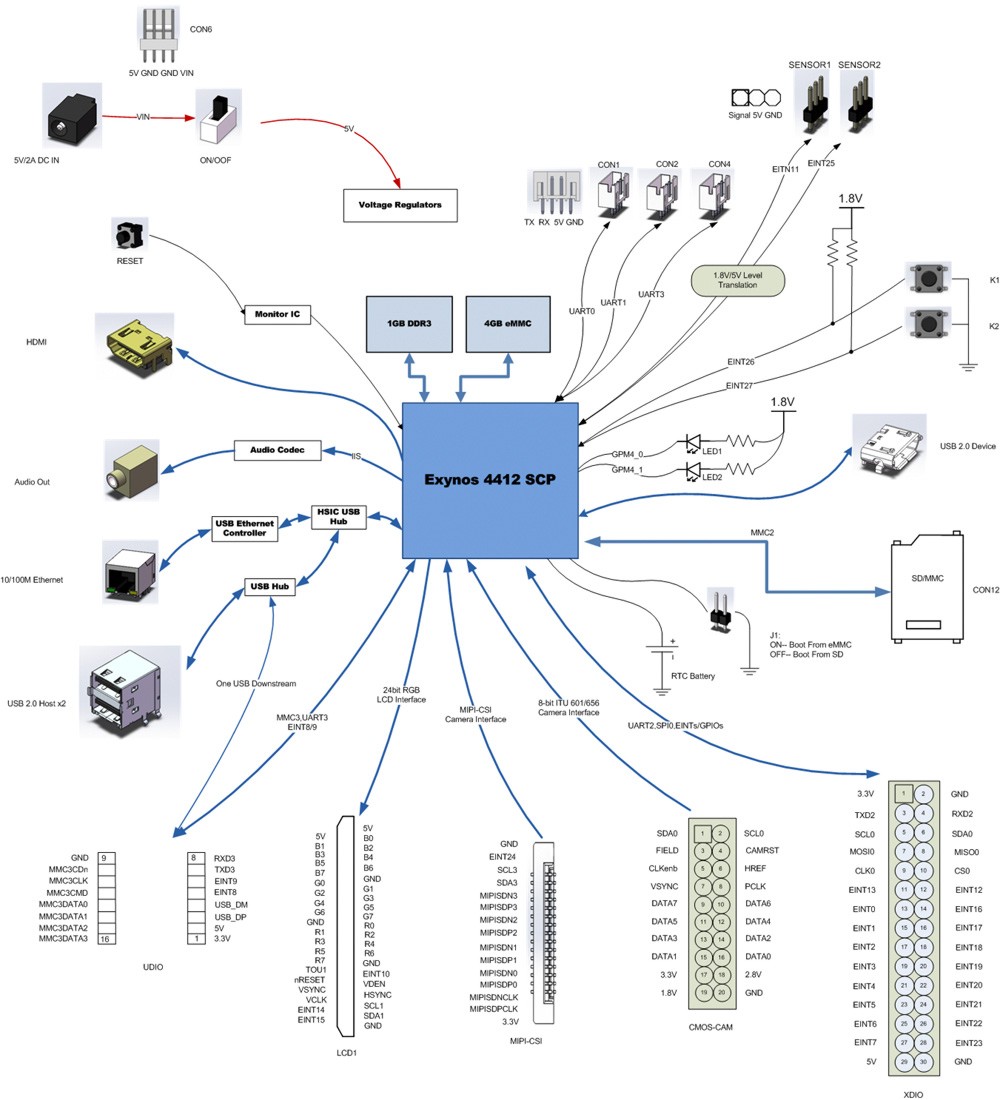

NanoPC-T1 NanoPC-T1 Overview NanoPC-T1 Interfaces
