Smart210 (Tiny210v2) | S5PV210 ARM Cortex-A8 Board

FriendlyARM Smart 210 Stamp Module with 1 GHz Samsung S5PV210 ARM Cortex-A8 processor.

Specification: Stamp Module

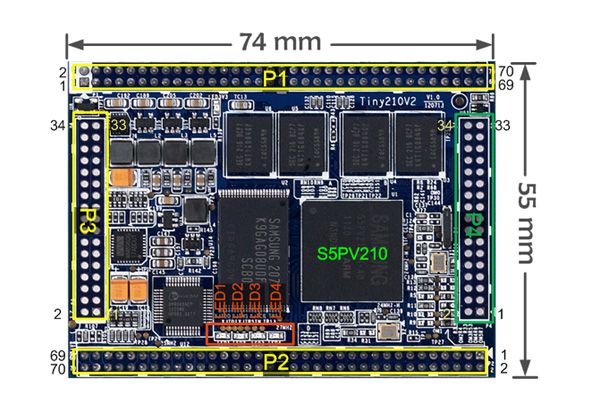

  • Dimension: 74 x 55 mm
  • CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
  • RAM: 512 MB, 32 bit Bus
  • Flash: up to 1GB NAND Flash
  • Ethernet: 10/100M (DM9000)
  • Audio: WM8960 codec
  • Serial, SPI, I2C, I2S, SD/MMC, USB, LCD, Camera Interface
  • Analog Input and Output
  • User Outputs: 4x LEDs
  • Expansion headers (2.0 mm)
  • Power: 2-6V
  • OS Support
    • Windows CE 6
    • Linux
    • Android

Specification: SDK-Board

  • Dimension: 180 x 130 mm
  • EEPROM: 256 Byte (I2C)
  • Ext. Memory: SD-Card socket
  • Serial Ports: DB9 connector (RS232), total: 4x serial port connectors)
  • USB: USB-A Host 1.1, miniUSB Slave/OTG 2.0
  • mini PCIe
  • SIM Card
  • Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
  • Audio Input: 3.5mm jack + Condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery
  • Beeper: PWM buzzer
  • Camera: 20 pin (2.0 mm) Camera interface
  • TV Input: AV In
  • Monitor: HDMI
  • LCD: 40 pin FFC, 40 pin FFC and 45 pin FFC connector
  • User Inputs: 8x buttons and 1x A/D pot
  • Expansion: (2.0 mm)
  • Power: regulated 5V

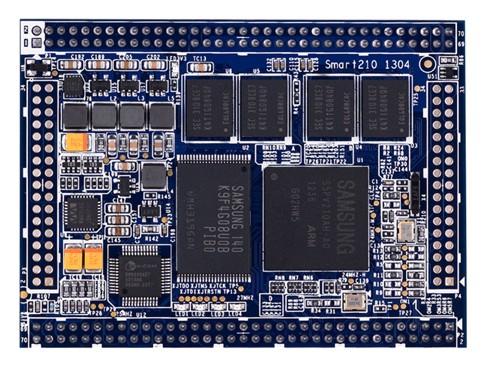

Stamp Module

Smart210 Smart210 Overview

SDK-Board

Smart210 SDK Standard Edition Overview Smart210 SDK 3G Edition Overview
