Mini210s | S5PV210 ARM Cortex-A8 Board

FriendlyARM Mini 210s SBC (Single-Board Computer) with 1 GHz Samsung S5PV210 ARM Cortex-A8 processor.

Specification

  • Dimension: 110 x 110 mm
  • CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
  • RAM: 512 MB, 32 bit Bus
  • Flash: up to 2GB NAND Flash
  • EEPROM: 256 Byte (I2C)
  • Ext. Memory: microSD-Card socket
  • Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
  • USB: 1x USB-A Host 2.0, 1x miniUSB Slave/OTG 2.0
  • Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
  • Audio Input: Condenser microphone
  • Ethernet: RJ-45 10/100M (DM9000)
  • RTC: Real Time Clock with battery
  • Beeper: PWM buzzer
  • Camera: 2x 20 pin (2.0 mm) Camera interface
  • Monitor: miniHDMI
  • LCD Interface: 24 pin (2.0 mm) MIPI and 41 pin connector for FriendlyARM Displays
  • User Inputs: 4x push buttons and 1x A/D pot
  • User Outputs: 4x LEDs
  • Expansion: 40 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 20 pin Buttons/Keypad (2.0 mm)
  • Debug: 10 pin JTAG (2.0 mm)
  • Power: regulated 5V (DC-Plug)
  • OS Support
    • Windows CE 6
    • Linux
    • Android

Board

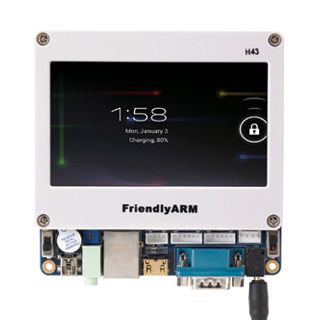

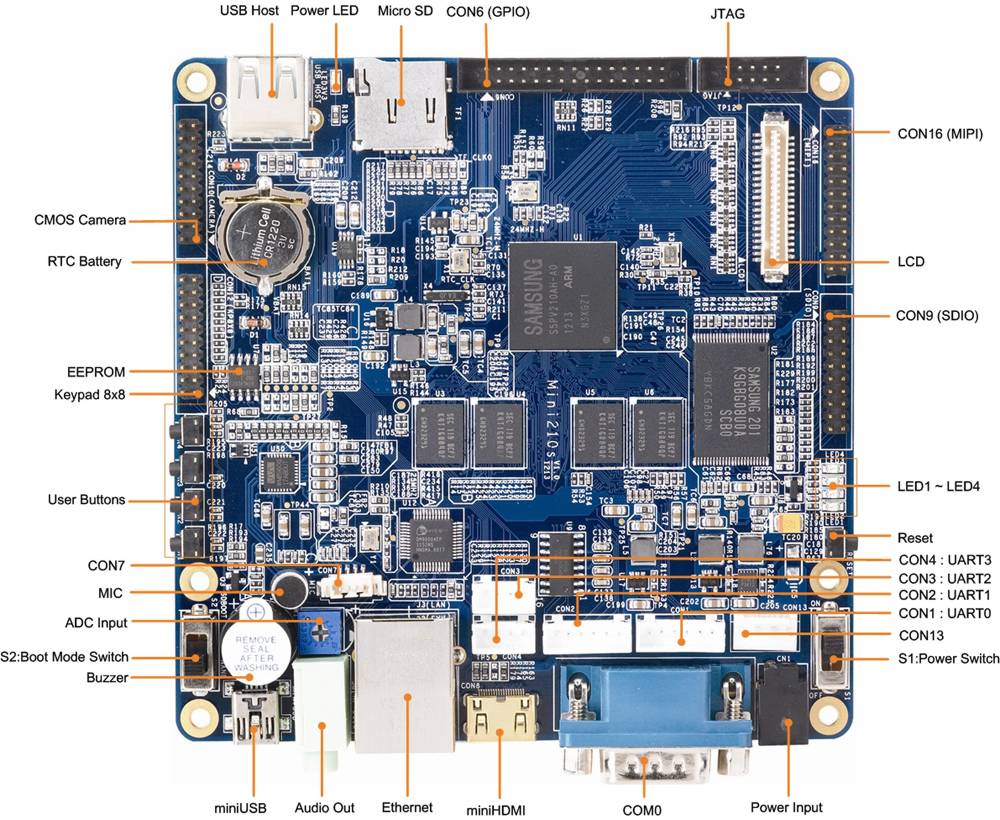

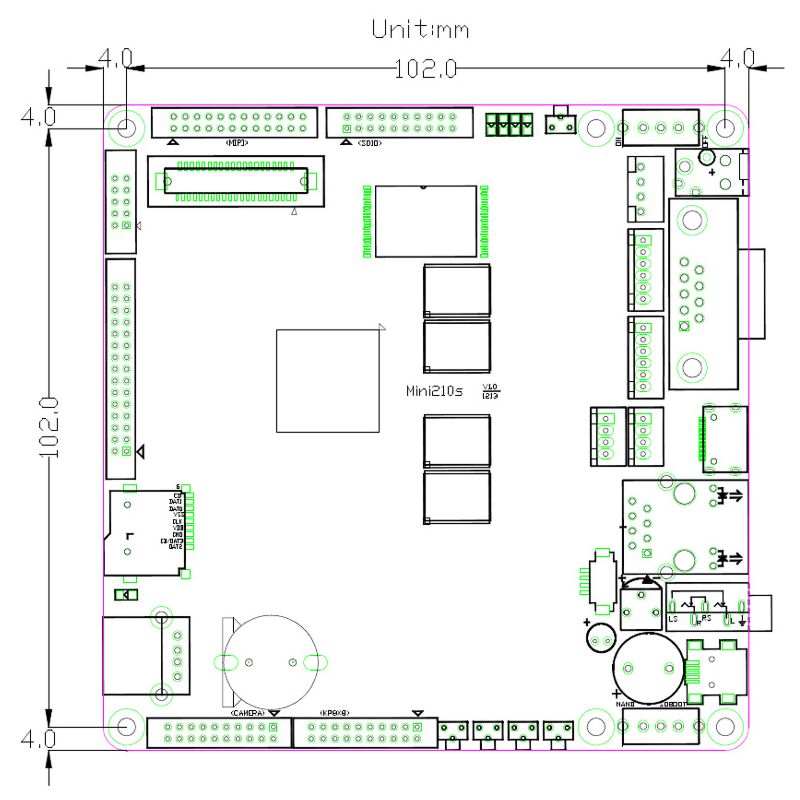

Mini210s Mini210s Overview Mini210s Dimension Mini210s with 4.3" Display and Touch Panel
