Mini210 | S5PV210 ARM Cortex-A8 Board

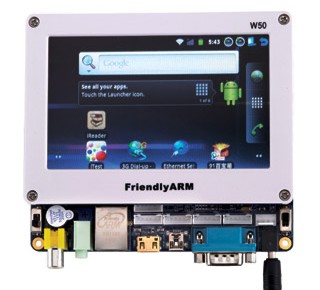

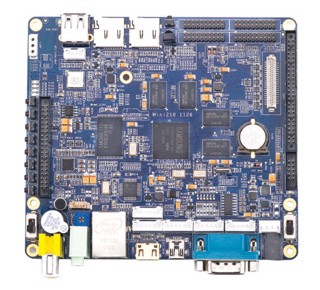

FriendlyARM Mini 210 SBC (Single-Board Computer) with 1 GHz Samsung S5PV210 ARM Cortex-A8 processor.

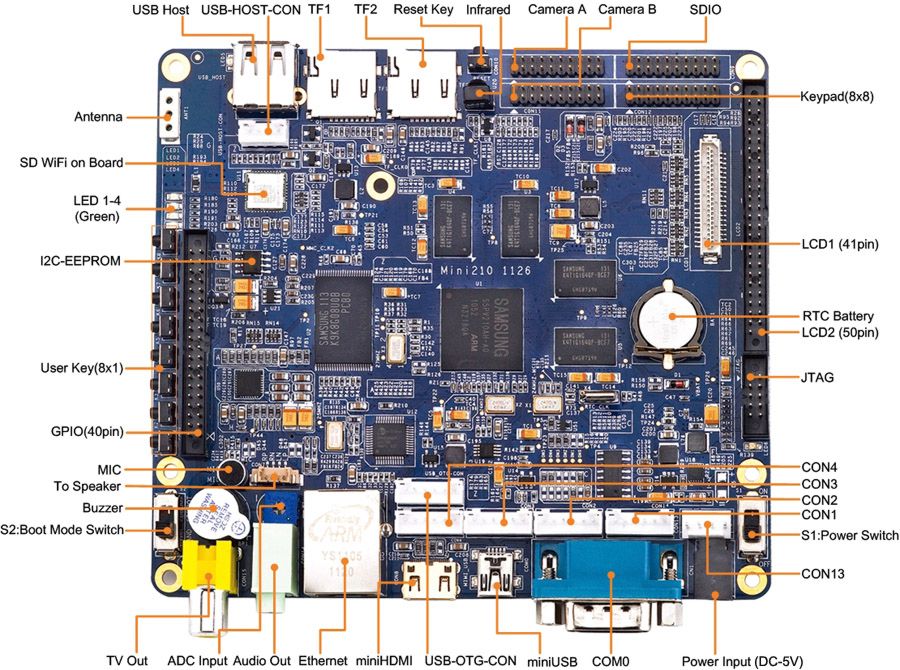

Specification

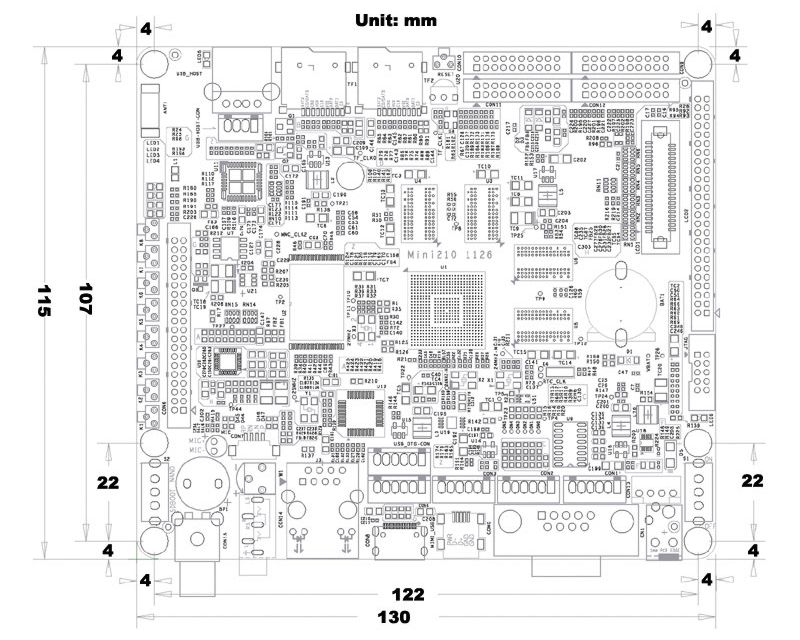

Dimension: 130 x 115 mm
CPU: 1 GHz Samsung S5PV210 with PowerVR SGX540 graphics engine
RAM: 512 MB, 32 bit Bus
Flash: up to 1GB NAND Flash
EEPROM: 256 Byte (I2C)
Ext. Memory: 2x microSD-Card socket
Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
IR: Infrared Receiver
USB: 1x USB-A Host 2.0, 1x miniUSB Slave/OTG 2.0
Audio Output: 3.5 mm stereo jack, connector for a speaker (Class D Amp)
Audio Input: Condenser microphone
Ethernet: RJ-45 10/100M (DM9000)
WiFi/WLAN: onboard SD-WiFi with ceramic antenna
RTC: Real Time Clock with battery
Beeper: PWM buzzer
Camera: 2x 20 pin (2.0 mm) Camera interface
TV Output
Monitor: miniHDMI

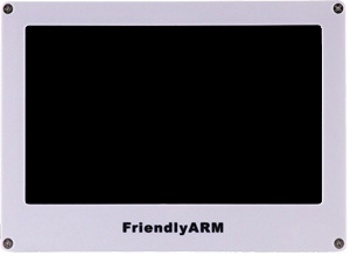

LCD Interface: 50 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays
User Inputs: 4x push buttons and 1x A/D pot
User Outputs: 4x LEDs
Expansion: 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 20 pin Buttons/Keypad (2.0 mm)
Debug: 10 pin JTAG (2.0 mm)
Power: regulated 5V (DC-Plug)
OS Support
- Windows CE 6
- Linux
- Android
